Specifications
- Product type: PA loudspeaker
- Type: Passive
- Low/mid Woofer dimensions: 8 "
- Woofer dimensions (mm): 200 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil (inch): 2 "
- Woofer voice coil (mm): 50.8 mm
- Horn: BEM optimized CD Waveguide
- HF driver dimensions: 1 "
- HF driver dimention (mm): 25.4 mm
- HF driver magnet: Neodymium
- HF driver brand: Custom-made
- HF driver voice coil: 1 "
- HF driver voice coil (mm): 25.4 mm
- Dispersion (H x V): 120° x 80° (-6 dB)
- Load rating (RMS): 120 W
- Peak power: 240 W (>100Hz)
- Frequency response: 62 - 20000 Hz (-10dB)
- Crossover frequency: 1800 Hz
- SPL (1W/1m): 88 dB
- Max. SPL: 109 dB
- Impedance: 8 Ohm(s)
- Speaker input connections: 4-pole Terminal Block. Pitch 5.08mm
- Cabinet material: ABS plastic
- Cabinet colour: White (RAL9010)
- Protection class IP: 55
- Width: 255.8 mm
- Height: 413.9 mm
- Depth: 314.6 mm
- Accessories (included): Allen Key for the safety screw, Bracket for surface mount
- Optional accessories: LDDQORWMC (rubber cover set for wall mount bracket)
- Weight: 5,2 kg
Overview
- For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified
-
Elegant, dynamic design to suit any environment
-

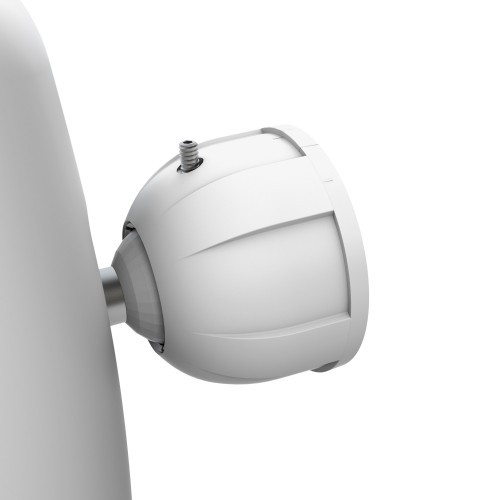

Slide-and-lock wall mount with concealed integrated connections
-
Weather treated paper cone woofer and FerroFluid™-cooled titanium high frequency driver
-
BEM-optimized waveguide for balanced sound
-
Corrosion-resistant aluminum front grille
-
Superb, balanced sound thanks to a 2-way system
-
Wide coverage angle (120° horizontal, 80° vertical)
