Indoor/outdoor use, IP65

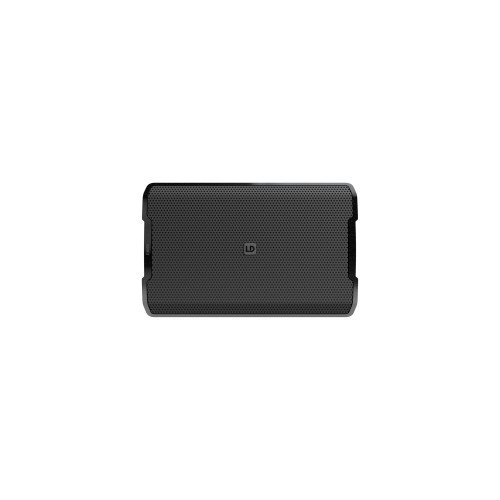

Corrosion-resistant aluminum front grille

Elegant, dynamic design to suit any environment

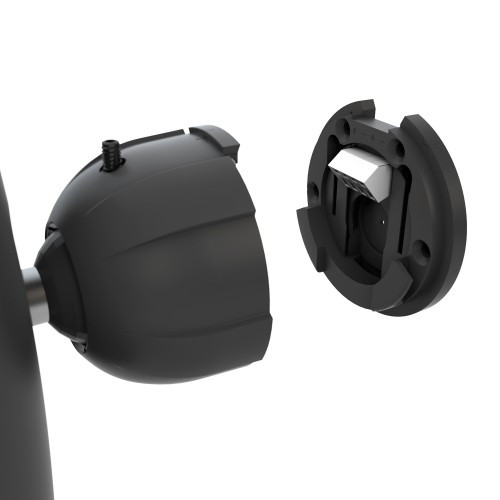

Slide-lock wall mount

Superb, balanced sound

Weather treated paper cone woofer and FerroFluid-cooled titanium high frequency driver

Wide coverage angle(120° horizontal, 80° vertical)

BEM-optimized waveguide for balanced sound

Product type: PA loudspeaker

Type: Passive

Low/mid Woofer dimensions: 3 "

Woofer dimensions (mm): 76.2 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

Woofer voice coil (inch): 1 "

Woofer voice coil (mm): 25.4 mm

Horn: BEM optimized CD Waveguide

HF driver dimensions: 1 "

HF driver dimention (mm): 25.4 mm

HF driver magnet: Neodymium

HF driver brand: Custom-made

HF driver voice coil: 1 "

HF driver voice coil (mm): 25.4 mm

Dispersion (H x V): 120° x 80° (-6 dB)

Load rating (RMS): 30 W

Peak power: 60 W (>200Hz)

Frequency response: 85 - 20000 Hz (-10dB)

Crossover frequency: 2200 Hz

SPL (1W/1m): 80 dB

Max. SPL: 98 dB

Impedance: 8 Ohm(s)

Speaker input connections: 4-pole Terminal Block. Pitch 5.08mm

Cabinet material: ABS plastic

Cabinet colour: Black (RAL 9005)

Protection class IP: 65

Width: 114.6 mm

Height: 180 mm

Depth: 180.8 mm

Accessories (included): Allen Key for the safety screw, Bracket for surface mount

Optional accessories: LDDQORWMC (rubber cover set for wall mount bracket)

Weight: 1,4 kg
